Product Profile

Square Pattern

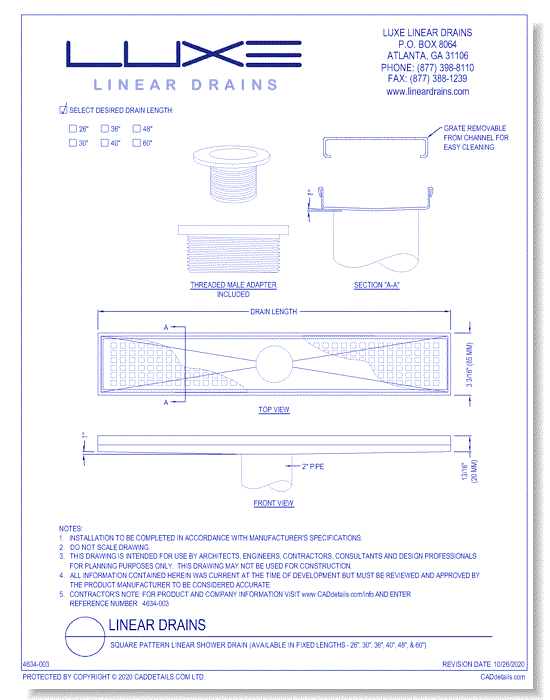

CAD Drawings LUXE Linear Drains Square Pattern

Our economical square hole pattern grate elegantly provides form and function. Fits all standard 2" floor drains. Replaces conventional strainer giving an improved and desirable visual appeal. Grate is easily removed for maintenance access and cleaning. Custom designs available. Standard Lengths are 26", 30", 36", 40", 48", and 60".


Economical square hole pattern can be matched with any of your other chosen tiles and finishes. Standard finish is satin stainless. Custom finishes and designs available.
