Slimline Headwall

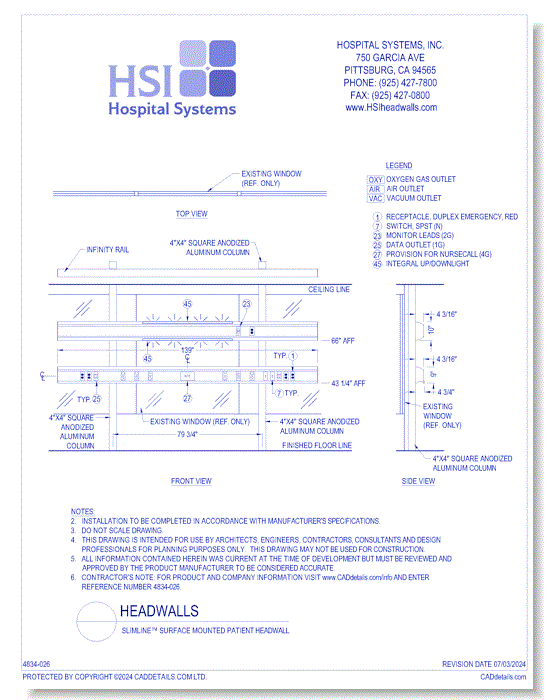

CAD Drawings Hospital Systems, Inc. Slimline Headwall

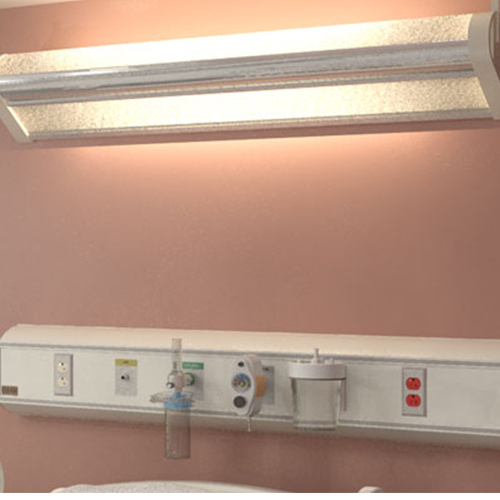

The Slimline Surface Mounted Patient Headwall [Bedhead Unit] is designed to accommodate lighting, electrical receptacles, medical gas outlets, nurse call, and telephone in a convenient package. The enclosure is constructed of extruded, heat-treated, anodized aluminum alloy sections to provide a modular, surface-mounted wall unit. Integral horizontal raceways are included for normal power, emergency power, communications and medical gas pipes. The fascia can be removed for access to individual components mounted within. A wide choice of colors is available for the fascia. Each unit is pre-wired and pre-piped for easy field connections.
