Miller Edge Inc.

MU21 Sensing Edge (2” sectional door)


Touch activated safety edge provides protection on leading edge of a sectional door. Provides a safe means of stopping and/or reversing a door’s motion should it come into contact with an obstruction.


1” tall. Designed for use on 2” sectional doors. Custom manufactured to required length.


Note:

• Tested with most listed commercial operator manufacturers

• Complies with the UL 325-2010 standard

• May be used as the required monitored device or as an ancillary device


Since 2009, the International Building Code (IBC-2009) has required compliance with the current UL 325 safety standard. Effective August 29, 2010, Underwriters Laboratories required that all commercial door operators bearing the UL label are required to be installed with a continuously monitored safety device.

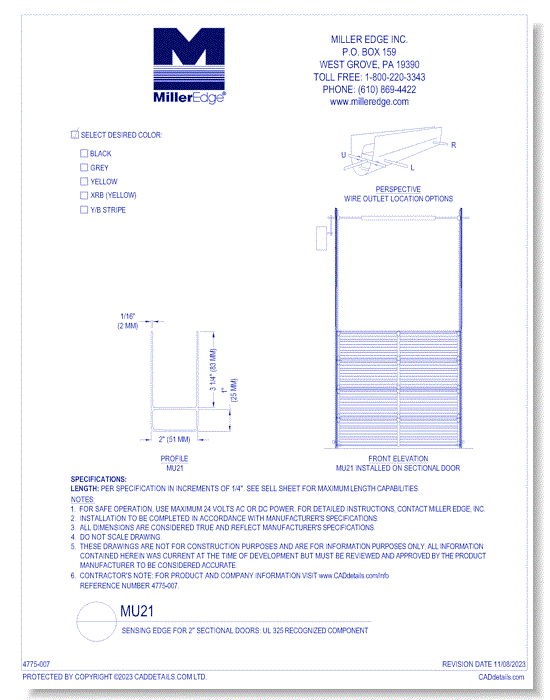

CAD Drawings Miller Edge Inc. MU21 Sensing Edge (2” sectional door)
