Miller Edge Inc.

ME110 Sensing Edge


DOORS: The ME110 Sensing Edge is a touch activated safety edge attaches to leading edge of small countertop coiling shutters or grilles. Provides a safe means of stopping and/or reversing a door/grille’s motion should it come into contact with an obstruction.


Designed for use on doors counter shutters, lightweight grilles, concessions. Custom manufactured to required length.


Note:

• Tested with most listed commercial operator manufacturers

• Comply with the UL 325-2010 standard

• May be used as the required monitored device or as an ancillary device


Since 2009, the International Building Code (IBC-2009) has required compliance with the current UL 325 safety standard. Effective August 29, 2010, Underwriters Laboratories required that all commercial door operators bearing the UL label are required to be installed with a continuously monitored safety device.


GATES: The ME110 Sensing Edge is a touch activated safety edge that provides post-to-post protection on slide gates. Installed to provide pinch point protection in entrapment areas, the ME110 provides a safe means of stopping and/or reversing a gate’s motion should it come into contact with an obstruction.


The small profile of the ME110 makes it ideal for use on center posts and pockets, helping to protect from injuries caused by reach through. What size post? Or is center post clear enough? Installed with a PVC mounting channel, ME110 are custom manufactured to required lengths and outlet locations.


Note:

• Tested with most listed commercial gate operator manufacturers

• Complies with the UL 325-2016 Standard

• May be used as the required monitored device or as an ancillary device


Before designing or motorizing any gate, be sure to read and understand the ASTM-F2200 standard for gate construction. Additionally, since 2009, the International Building Code (IBC-2009) has required compliance with the current UL 325 safety standard.


Miller Edge offers a convenient guide to help you comply with the ANSI/UL 325 standard for gate entrapment protection devices. To request a printed copy of this guide, please email [email protected]

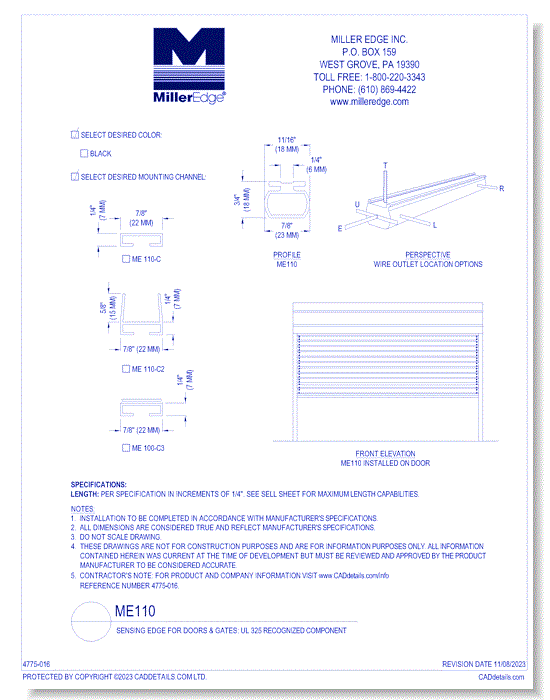

CAD Drawings Miller Edge Inc. ME110 Sensing Edge
