Miller Edge Inc.

ME120 Sensing Edge


DOORS: The ME120 Sensing Edge is a touch activated safety edge attaches to leading edge of coiling shutters or grilles with extruded bottom bars. Provides a safe means of stopping and/or reversing a door/grille’s motion should it come into contact with an obstruction.


Designed for use with coiling doors accepting extruded bottom bar configurations up to 1.5” wide. Custom manufactured to required length.


Note:

• Tested with most listed commercial operator manufacturers

• Complies with the UL 325-2010 standard

• May be used as the required monitored device or as an ancillary device

Since 2009, the International Building Code (IBC-2009) has required compliance with the current UL 325 safety standard. Effective August 29, 2010, Underwriters Laboratories required that all commercial door operators bearing the UL label are required to be installed with a continuously monitored safety device.


GATES: The ME120 Sensing Edge is a touch activated safety edge that provides post-to-post protection on sliding, pivot, and vertical lift gates. Installed to provide pinch point protection in entrapment areas, the ME120 provides a safe means of stopping and/or reversing a gate’s motion should it come into contact with an obstruction.


Designed for use on horizontal slide gates, pivot gates, and vertical lift gates with 1-1/4” to 1-1/2” thick frames, the ME120 are custom manufactured to required lengths and outlet locations.


Note:

• Tested with most listed commercial gate operator manufacturers

• Complies with the UL 325-2016 Standard

• May be used as the required monitored device or as an ancillary device


Before designing or motorizing any gate, be sure to read and understand the ASTM-F2200 standard for gate construction. Additionally, since 2009, the International Building Code (IBC-2009) has required compliance with the current UL 325 safety standard.


Miller Edge offers a convenient guide to help you comply with the ANSI/UL 325 standard for gate entrapment protection devices. To request a printed copy of this guide, please email [email protected]

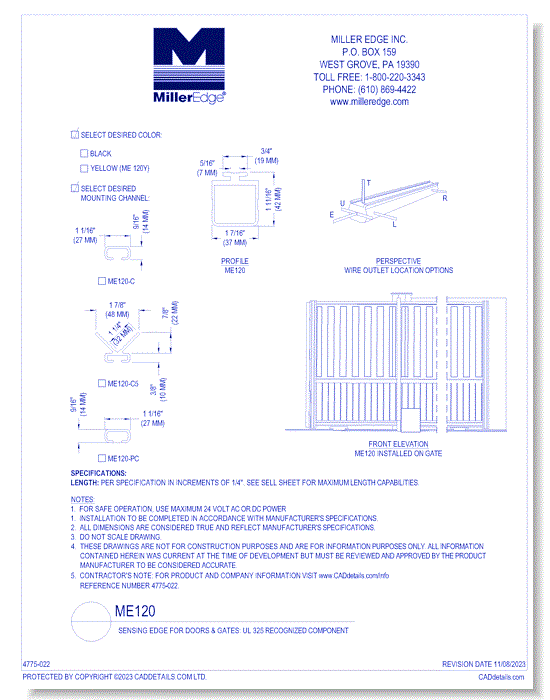

CAD Drawings Miller Edge Inc. ME120 Sensing Edge
