Hayward Commercial Aquatics

HCF Series Cartridge Filters


The Dual Quad-Cluster commercial HCF7030C cartridge filter system features a massive 700sq ft. of filter area providing heavy-duty, dirt-holding capacity and extra-long filter cycles. It will reduce operation costs and enhance the eco-friendliness of the facility by saving thousands of gallons of carefully-balanced, heated pool water per month through the elimination of backwashing.


Ideal for new construction or retrofit, the HCF7030C is able to accommodate commercial flow rates to 150 GPM. The filter exterior is molded from a glass reinforced copolymer material, capable of meeting the rigorous demands of the commercial environment.

CAD Drawings BIM Models Hayward Commercial Aquatics HCF Series Cartridge Filters
CAD Drawings BIM Models Hayward Commercial Aquatics HCF Series Cartridge Filters
CAD Drawings BIM Models Hayward Commercial Aquatics HCF Series Cartridge Filters
CAD Drawings BIM Models Hayward Commercial Aquatics HCF Series Cartridge Filters

Listing Back To Top

Design Visualizer

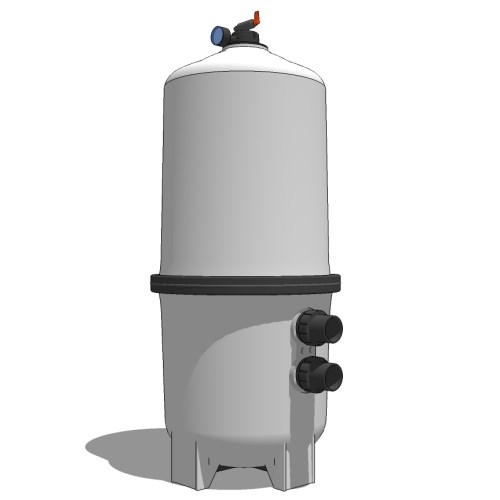

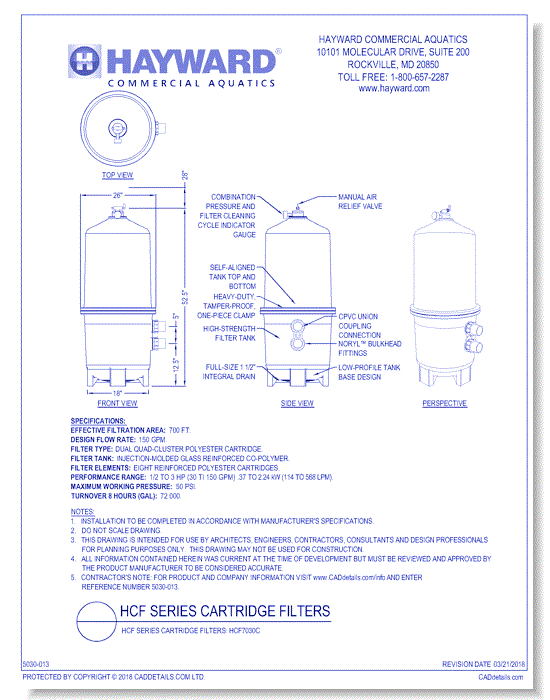

HCF Series Cartridge Filters: HCF7030C
HCF Series Cartridge Filters: HCF7030C
