MLPT400


CAD Drawings BIM Models Maglin Site Furniture Inc. MLPT400
CAD Drawings BIM Models Maglin Site Furniture Inc. MLPT400
DIMENSIONS & WEIGHT
MLPT400-S-W
Ipe Wood
Height: 29.5" (74.9cm)
Length: 62.25" (158.1cm)
Seat: 17.50" (44.5cm)
Weight: 231.34lbs (104.9kg)

MLPT400-S-R
Recycled Plastic - Wood Grain
Height: 29.5" (74.9cm)
Length: 62.25" (158.1cm)
Seat: 17.50" (44.5cm)
Weight: 207.55lbs (94.1kg)

MLPT400-S-BM
Metal
Seat Height: 29.5" (45.1cm)
Length: 70" (177.8cm)
Seat: 17.7" (45cm)
Weight: 278lbs (126.1kg)

OPTIONS
Gaming Board
Wheelchair Accessibility

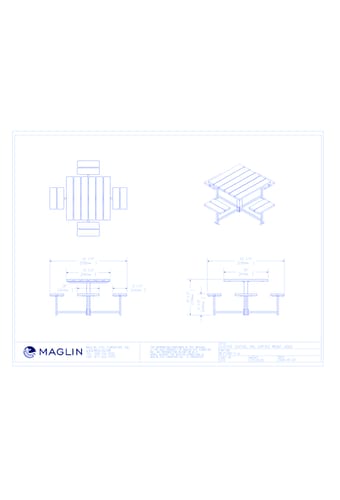

Surface Mount

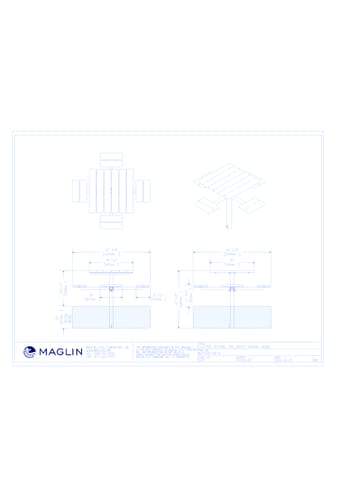

Direct Burial

FINISHES
All steel components are protected with E-Coat Rust Proofing. The Maglin Powdercoat System provides a durable finish on all metal surfaces. Ipe wood slats are finished with penetrating sealers.

INSTALLATION
The MLPT400 Series Cluster Seating surface mount tables are delivered pre-assembled. Tables with the direct burial option are shipped knocked down with minimal assembly required.
