Subway

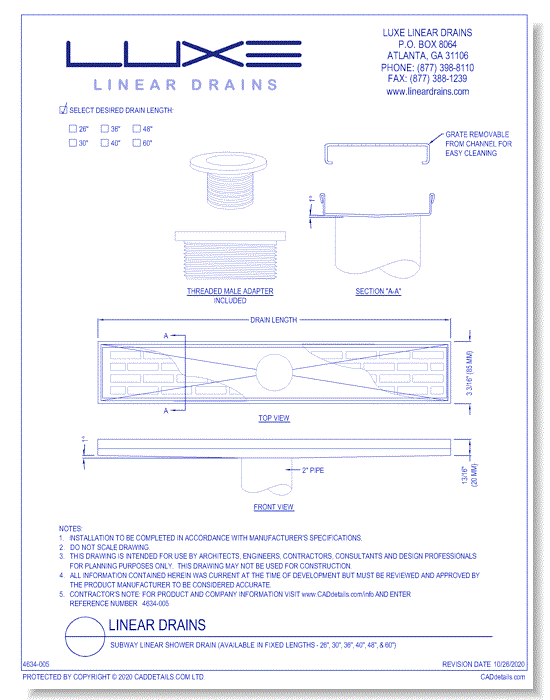

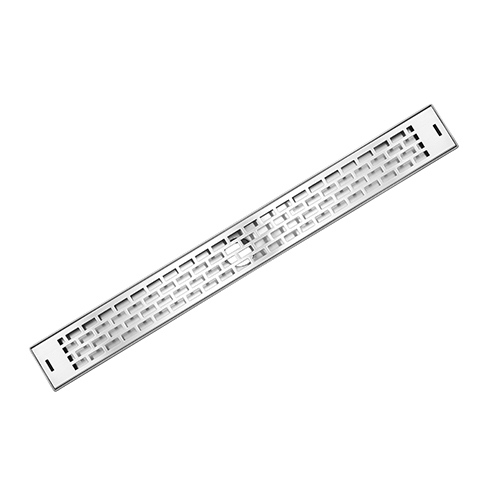

New Subway pattern grate in satin stainless finish is subtle, but statement-making, easily matching any décor. Fits all standard 2" floor drains. Replaces conventional strainer giving an improved and desirable visual appeal. Grate is easily removed for maintenance access and cleaning. Standard Lengths are 26", 30", 36", 40", 48", and 60".
SW-26, SW-30, SW-36, SW-40, SW-48, & SW-60.
LUXE Subway drains are very popular among designers and customers wishing to create the illusion of water vanishing in the floor. Accepts any tile, stone, or other flooring material up to 1/2” thick. All LUXE linear drains replace the conventional strainer of any conventional flanged floor drain giving and improved and desirable visual appeal. Tile tray is easily removed for maintenance access and cleaning. Available in 26”, 30”, 36”, 40”, 48” and 60.
Listing Back To Top
