Haws Corporation

Model 3377BF: Bottle Filler Attachment


Haws 3377BF bottle filler attachment for the 3377 pedestal drinking fountain uses a patented stainless steel push-button valve assembly allowing for front access stream adjustment as well as cartridge and strainer access. This pedestal mounted bottle filler offers the 'only' all stainless-steel valve body that is machined out of solid bar stock, is fully serviceable through the front of the push button assembly offering access to the water control cartridge and integral water supply strainer, and has front access to the water stream height adjustment for easy maintenance without having to remove the valve.

14 gauge bottle filler bracket, and 3/16" (.47 cm) thick galvanized steel pedestal extension with green powder-coated finish provides an exceptional corrosion resistance

100% lead-free waterways

Maintenance is made easy with front access to valve adjustment and cartridge replacement

1 gpm (3.8 L) Laminar flow limits bottle filler from splashing, keeping the drinking area contained and clean

Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains and electric water coolers to be lead-free by all known definitions including NSF/ANSI Standard 61, Section 9, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006).


CAD Drawings BIM Models Haws Corporation Model 3377BF: Bottle Filler Attachment

Listing Back To Top

Design Visualizer

Design Visualizer

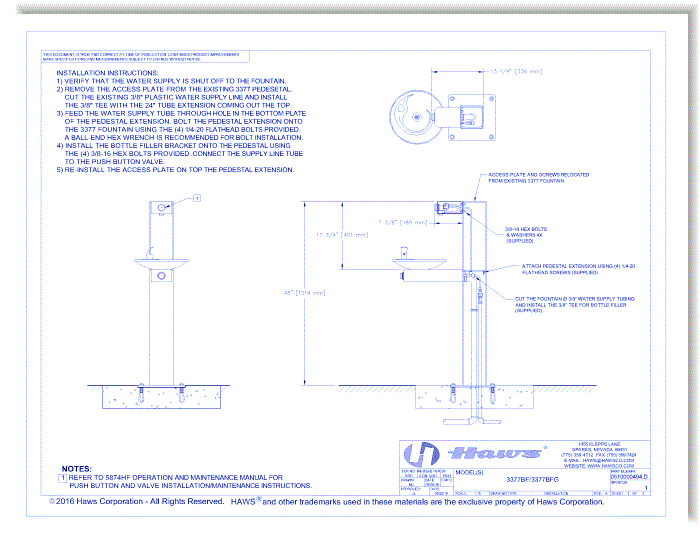

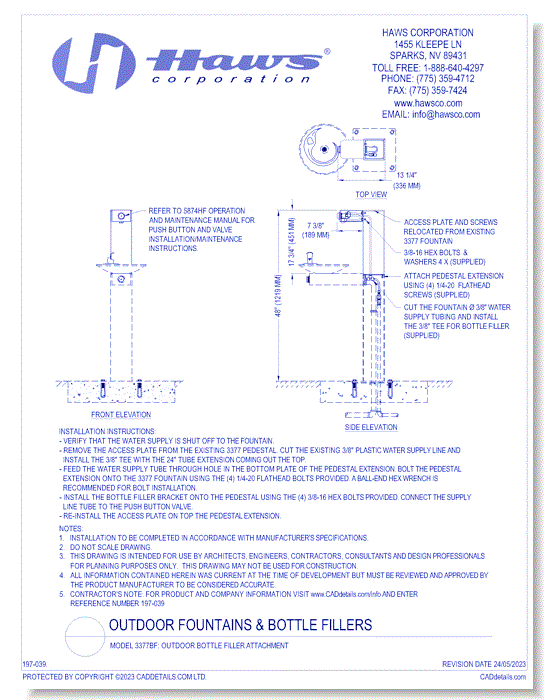

Model 3377BF: Outdoor Bottle Filler Attachment
Model 3377BF: Outdoor Bottle Filler Attachment
Model 3377BF: Outdoor Bottle Filler Attachment
