Miller Edge Inc.

Monitored Light Curtain


Unit contains a series of thru-beam photo eyes to provide a dense barrier of light that, when interrupted, signals a door to stop and/or reverse. Spans up to 32 feet wide and 3 or 6 feet high (model dependent). Monitored unit. Suitable for most commercial and industrial door applications.


Note:

• Tested with most listed commercial operator manufacturers

• Complies with the UL 325-2010 standard

• May be used as the required monitored device or as an ancillary device


Since 2009, the International Building Code (IBC-2009) has required compliance with the current UL 325 safety standard. Effective August 29, 2010, Underwriters Laboratories required that all commercial door operators bearing the UL label are required to be installed with a continuously monitored safety device.

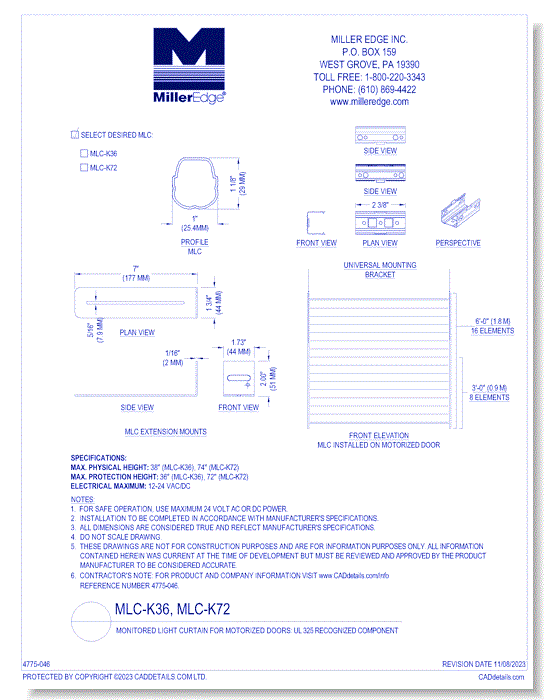

CAD Drawings Miller Edge Inc. Monitored Light Curtain
