Miller Edge Inc.

Rebel Thru Beam Photo Optic System


Rebel thru beam photo optic system sends an invisible beam of light from a transmitting

unit to a receiving unit. The light beam is intended to function as a protective line guarding a potentially hazardous zone. When the light beam is interrupted by an obstruction, a signal is sent to the motor controls to stop or reverse motion.

Rebel offers a variety of electrical and photo optic configurations available to suit an assortment of applications.


Options:

For distances up to 30 feet:

MIRM-S2: for monitored installations (post 2010 UL Listed commercial door operators)

MIRF-S2: for fail-safe installations (pre-2010 commercial operators)


For distances up to 50 feet:

MIRM-S2-50: for monitored installations (post 2010 UL Listed commercial door operators)

MIRF-S2-50: for fail-safe installations (pre-2010 commercial operators)

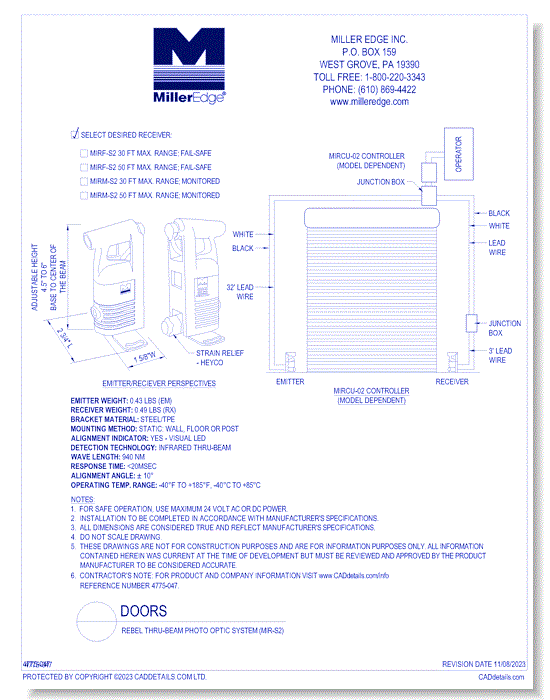

CAD Drawings Miller Edge Inc. Rebel Thru Beam Photo Optic System
