Avanti Systems USA

Movable Double Glazed Partition System: Movare™ - Architects Package

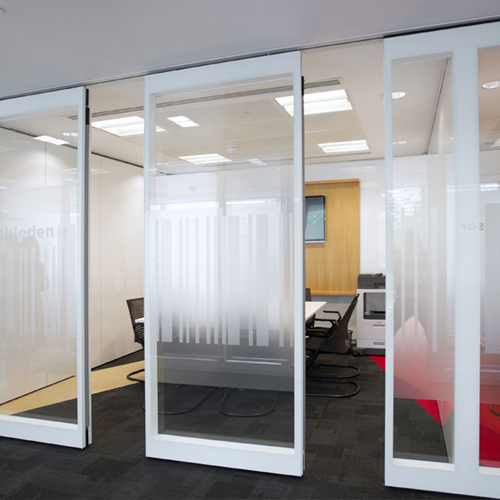

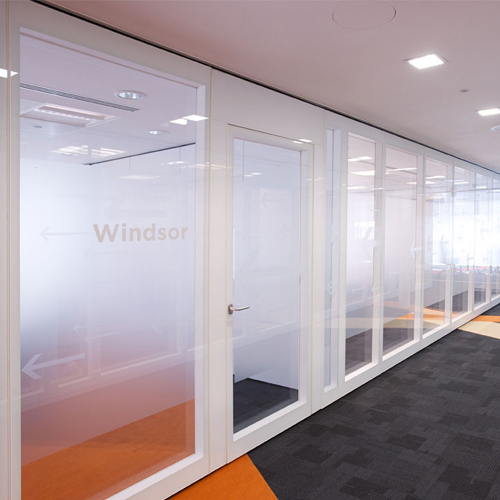

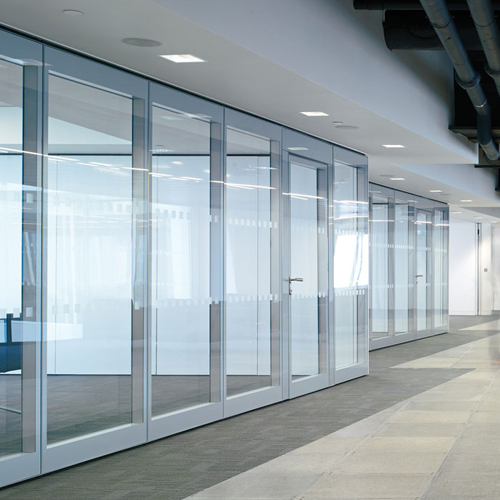

The MovareTM Movable Double Glazed Partition System provides temporary acoustic rated walls to any dynamic space.  The STC wall rating of 40dB instantly delivers acoustic performance to areas which require it the most. The 4” thick panel provides the option of integral blinds, which allow privacy between the temporarily created meeting space and surrounding areas.  The system is ideal for hotels and conference centers, corporate offices, hospitals, schools, colleges, universities, churches, and sports and leisure facilities.  When the MovareTM Movable Double Glazed Partition System is not in use, it may be parked in various customizable configurations that allow it to disappear from view.

The extruded 4” aluminum track may be configured to park center,side or parallel stacked at one or both ends, with single point, twin point and heavy duty roller options; and may be of standard or custom RAL color.  Clear tempered glazing is the installed standard glazing. Pivot doors and full height pass doors are available as well as allowing either end panel to be a free swing pivot access door.

The maximum height for the system is 13’-0” and maximum panel widths from 9 3/4" to 36”.

The System has a Class O surface spread of flame.

The MovareTM Movable Double Glazed Partition System contains recycled material and is infinitely recyclable.  The System meets LEED Characteristics.  LEED 2009 (v3):  MRc3, MRc4, MRc5, MRc7, EQc4.2, EQc8.1 and EQc8.2.  LEED v4:  MRc1, MRc3, MRc4, MRc8, EQc2, EQc7 and EQc8.

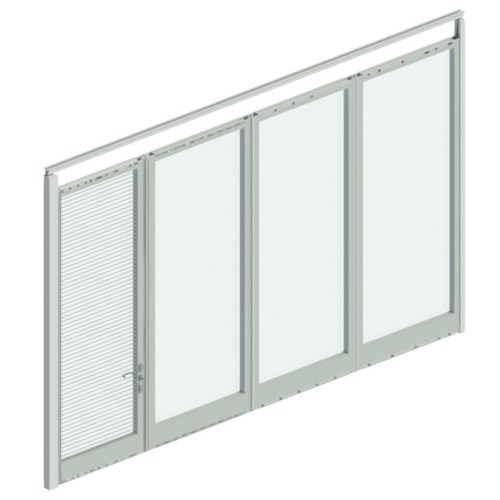

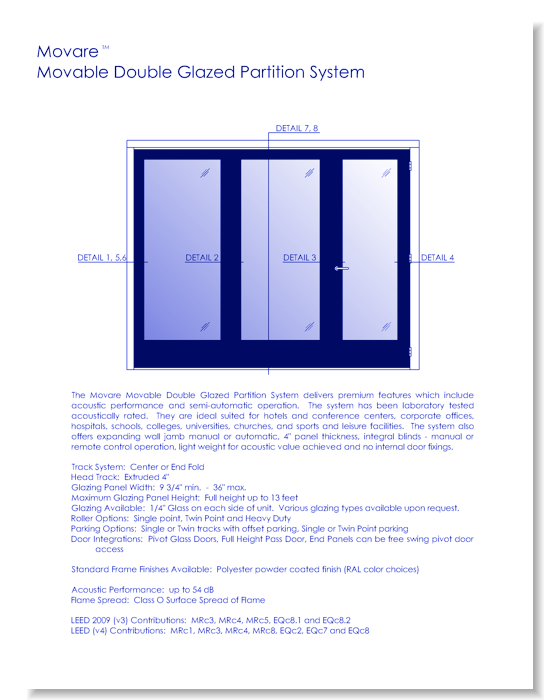

CAD Drawings BIM Models Avanti Systems USA Movable Double Glazed Partition System: Movare™ - Architects Package
CAD Drawings BIM Models Avanti Systems USA Movable Double Glazed Partition System: Movare™ - Architects Package
CAD Drawings BIM Models Avanti Systems USA Movable Double Glazed Partition System: Movare™ - Architects Package
