Avanti Systems USA

Modular Monoblock Partition System: Transverso™ - Architects Package

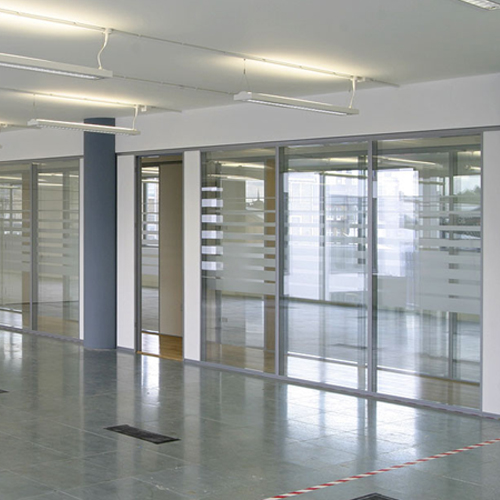

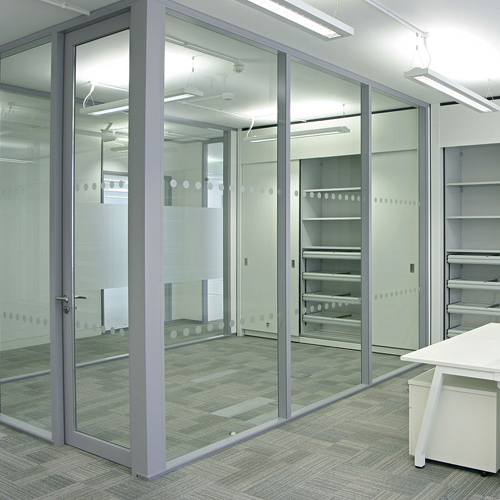

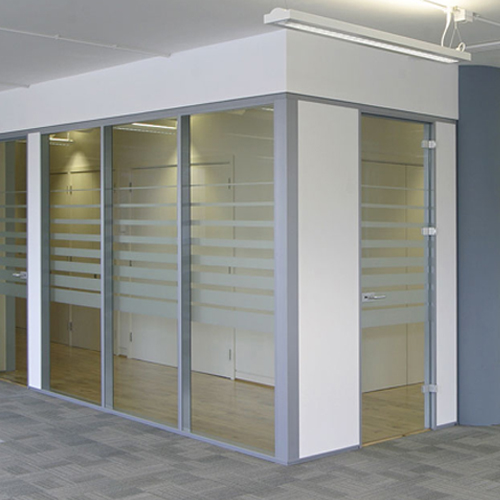

The Transverso MonoblockTM Modular Partition System offers pre-assembled units that quickly go into place and allow you to use your newly created space in record time.The pre-assembled units reduce site labor costs as well as material waste.  The system allows the use of gypsum board without the mess of joint compounds and sanding.  It also allows for the use of glass, wood, laminates, melamine facings and vinyl.

The system accommodates tempered, laminated, low iron and LCD glazing, and may also be of a straight, angled or curved configuration.  LCD, pivot, sliding and hinged doors may be installed.  Wood and glass doors (single glazed and double glazed) are all compatible within the free standing system.The fittings may be of an aluminum finish, standard RAL color (Jet Black, Silver, Grey or White) or a custom RAL color.

The maximum height for the Single Glazed system 16’-0” and maximum panel width is 5’-0”.The STC rating of the glass wall system is 45, while the STC rating of the solid wall is 47.

The Transverso MonoblockTM Modular Partition System is fully demountable.  It’s components contain recycled material and are infinitely recyclable.  The System meets LEED Characteristics.  LEED 2009 (v3):  MRc3, MRc4, MRc5, MRc7, EQc4.2, EQc8.1 and EQc8.2.  LEED v4:  MRc1, MRc3, MRc4, MRc8, EQc2, EQc7 and EQc8.

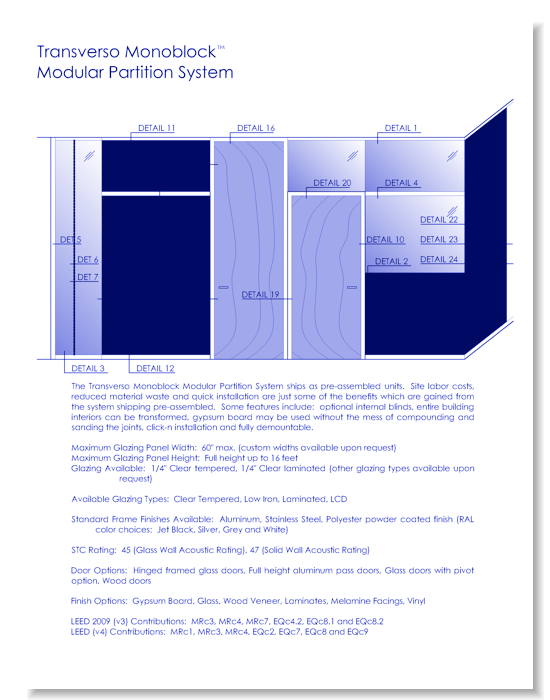

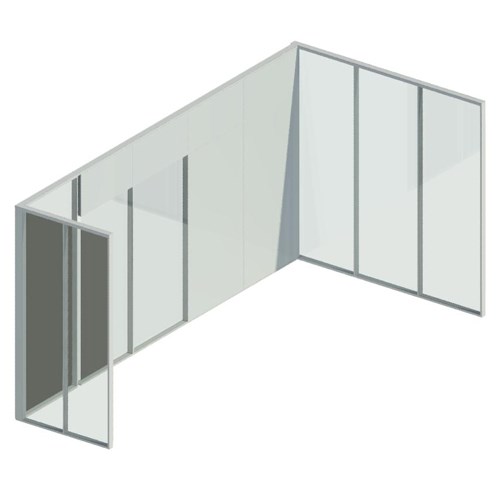

CAD Drawings BIM Models Avanti Systems USA Modular Monoblock Partition System: Transverso™ - Architects Package
