Avanti Systems USA

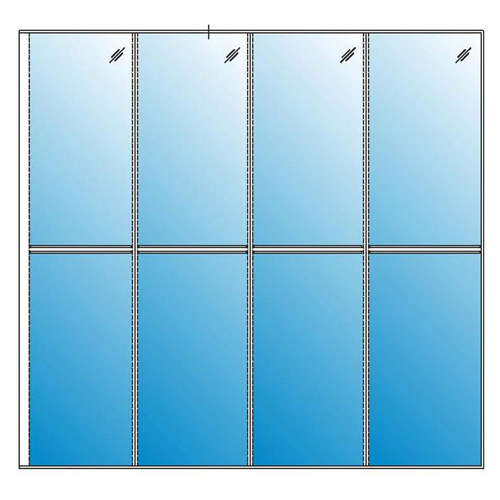

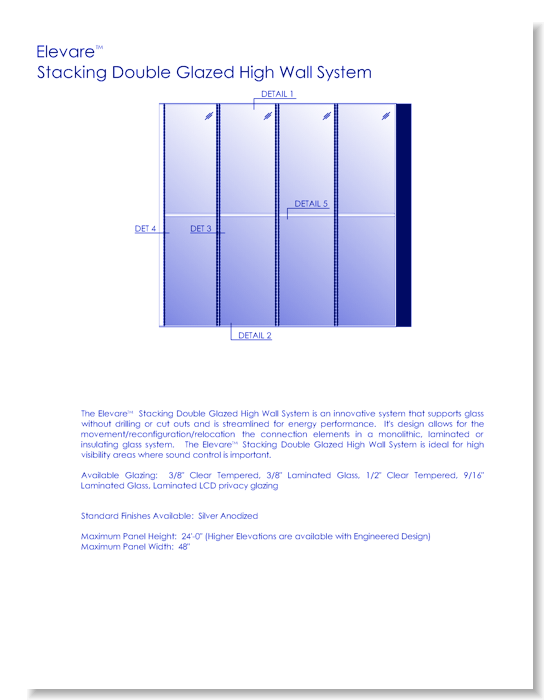

High Wall Glass Partition Systems: Elevare™ Stacking Double Glazed - Architects Package

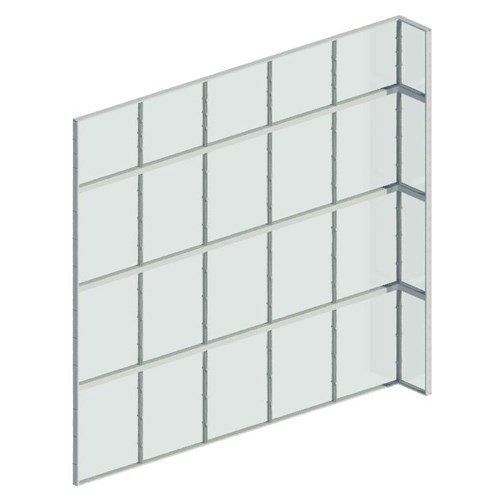

The ElevareTM Stacking High Wall System is an innovative supporting system for the double glazed partition system.This system allows for the acoustical rating of a traditional solid while still achieving the beauty and stylishness of a glazed partition.  All perimeters are fastened to solid walls.

The maximum panel height is 24’-0”, maximum panel width is 48” (panels may be larger with engineering).  Configurations may be straight, angled or curved.  LCD, pivot, sliding and hinged doors may be installed.  Glass doors (single glazed and double glazed) are all compatible within the system.Standard frame finishes include:  polyester powder coated finish (RAL), brushed finish, stainless steel finish and custom finishes are also available.

The ElevareTM Stacking High Wall System is fully demountable.  It’s components contain recycled material and are infinitely recyclable.  The System meets LEED Characteristics.  LEED 2009 (v3):  MRc3, MRc4, MRc5, MRc7, EQc4.2, EQc8.1 and EQc8.2.  LEED v4:  MRc1, MRc3, MRc4, MRc8, EQc2, EQc7 and EQc8.

CAD Drawings BIM Models Avanti Systems USA High Wall Glass Partition Systems: Elevare™ Stacking Double Glazed - Architects Package
