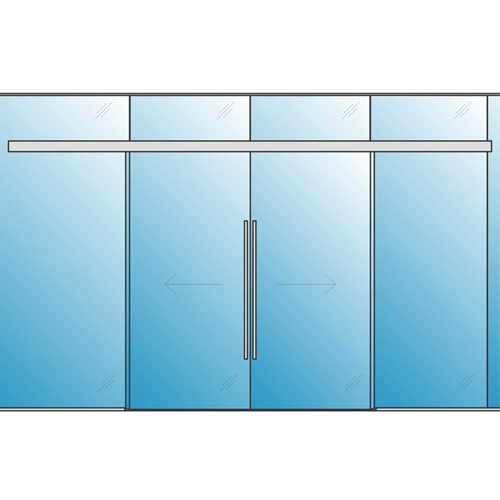

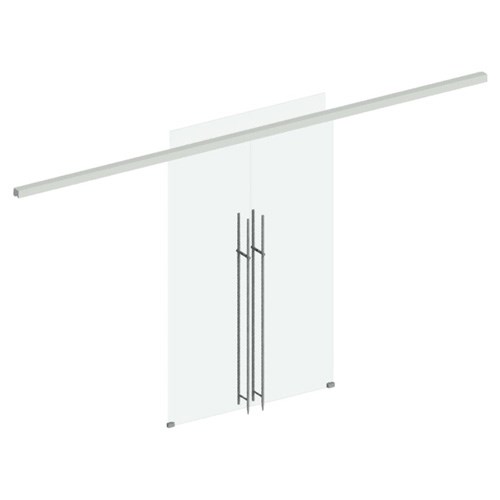

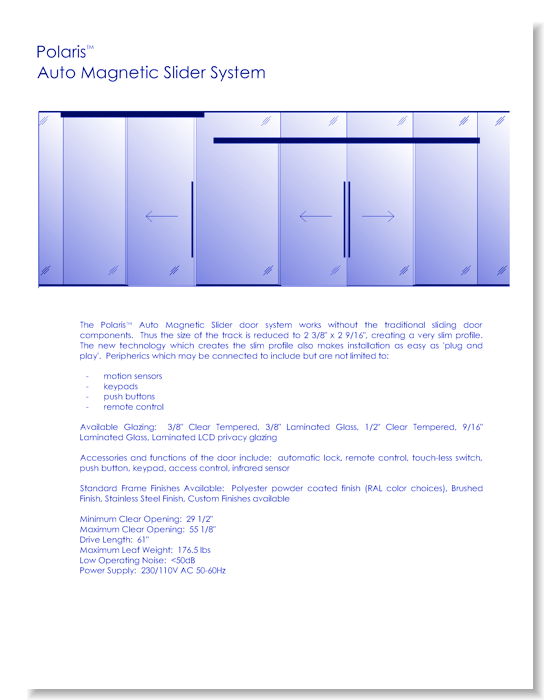

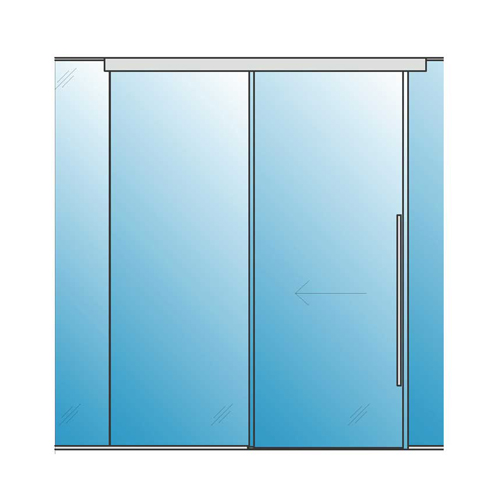

Auto Magnetic Slider: Polaris™ - Architects Package


The PolarisTM Auto Magnetic Sliding System offers the newest innovation in modern interior office entryway design.  This system is at the cutting edge of precision, technology, design and beauty.  Motion sensors, minimal maintenance, ceiling, glass and soffit face mount and fixed panel integration within one track are the featured available options for this system.  Available accessories include:  automatic lock, remote control, touchless switch, push button, keypad access control and infrared sensors.  Installation is as easy as ‘plug and play.

The system accommodates tempered, laminated, low iron and LCD glazing, and may also be of a straight, angled or curved configuration.  LCD, pivot, sliding and hinged doors may be installed.  Wood and glass doors (single glazed and double glazed) are all compatible within the automatic sliding system.The fittings may be of a brushed finish, standard RAL color or a custom RAL color, standard frame finishes include:  polyester powder coated finish (RAL), brushed finish, stainless steel finish and custom finishes are also available.  The PolarisTM Auto Magnetic Sliding System is compatible with SolareTM Acoustic Single Glazed, SolareTM Acoustic Double Glazed and EliteTM Free Standing Partition System.

The maximum height for the PolarisTM Auto Magnetic Sliding System is 12’-0” and maximum panel width is 5’-0”.

The PolarisTM Auto Magnetic Sliding System is fully demountable.  It’s components contain recycled material and are infinitely recyclable.  The System meets LEED Characteristics.  LEED 2009 (v3):  MRc3, MRc4, MRc5, MRc7, EQc4.2, EQc8.1 and EQc8.2.  LEED v4:  MRc1, MRc3, MRc4, MRc8, EQc2, EQc7 and EQc8.
