Avanti Systems USA

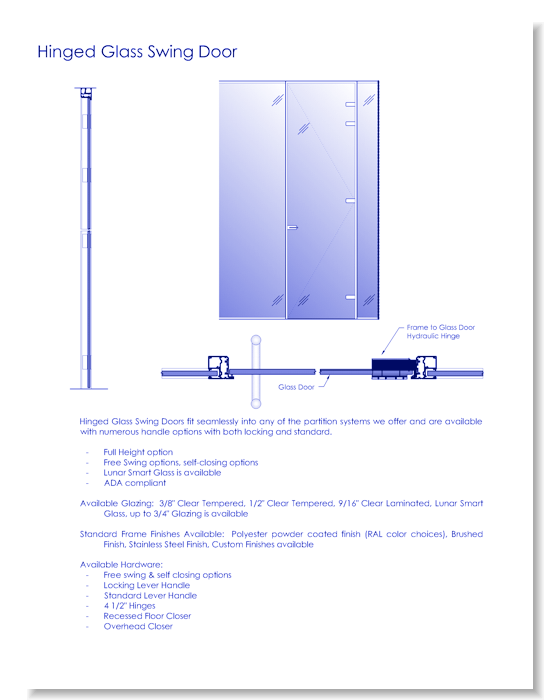

Hinged Doors: Framed Swing Door - Architects Package

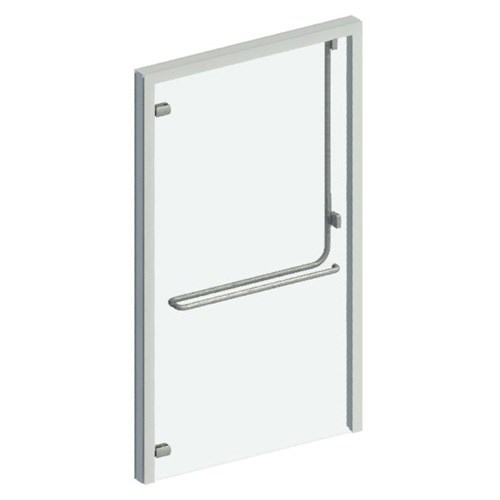

The Hinged Glass Swing Door is completely customizable and is compatible and fits seamlessly into our SolareTM Single and Double Glazed Partition, ElevareTM Stacking Double Glazed High Wall System, MovareTM Movable Double Glazed System or Transverso MonoblockTM Modular Wall Partition System as well as solid traditional walls.  Free swing and self-closing are options that are offered with this versatile solution.  Custom assemblies and custom finishes are also offered with the Hinged Glass Swing Door.

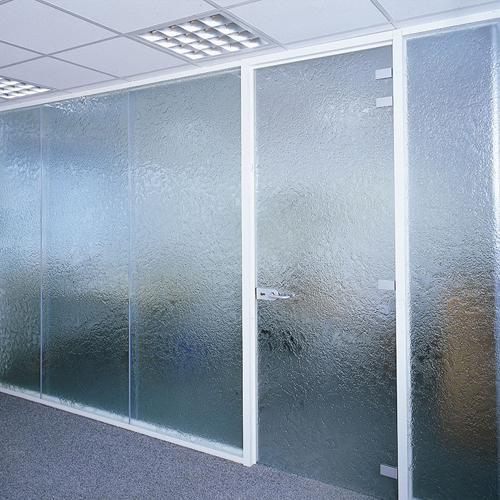

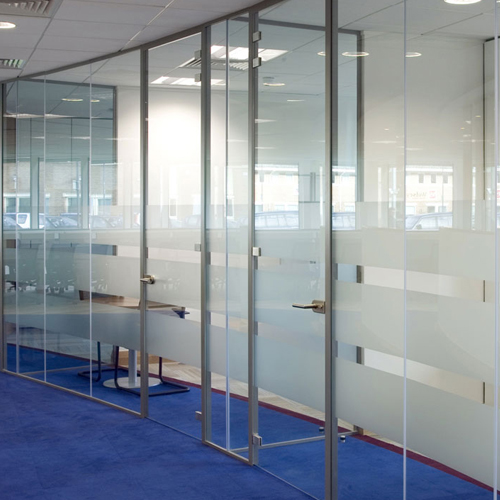

The door accommodates tempered, laminated, low iron and LCD glazing, and can be clear or patterned or have a custom graphic.  The Hinged Glass Swing Door fits into a straight or curved configuration and the only limit to it’s height is the height of the partition.  A pair of pivot doors is also an option for wider entries.  Our handles, hinges, pivots, and closers are compatible with the Hinged Glass Swing Door.  Available frame finishes include our standard polyester powder coated finish (RAL color choices), Brushed Finish and Stainless Steel Finish.  Custom finishes are also available.

The Hinged Glass Swing Door is completely compatible with all of our systems which are fully demountable, which qualify for LEED credits.

CAD Drawings BIM Models Avanti Systems USA Hinged Doors: Framed Swing Door - Architects Package
CAD Drawings BIM Models Avanti Systems USA Hinged Doors: Framed Swing Door - Architects Package
CAD Drawings BIM Models Avanti Systems USA Hinged Doors: Framed Swing Door - Architects Package
