Avanti Systems USA

Pivot Doors: Frameless Swing Door - Architects Package

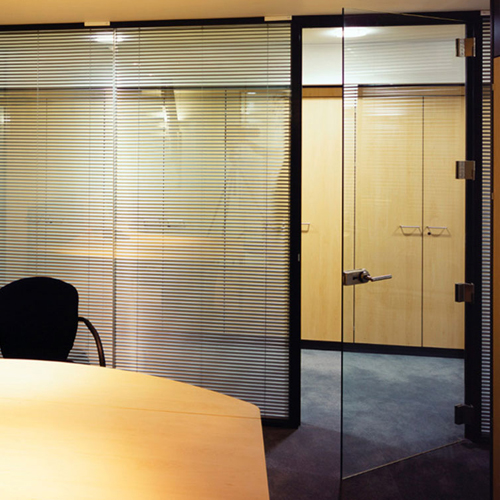

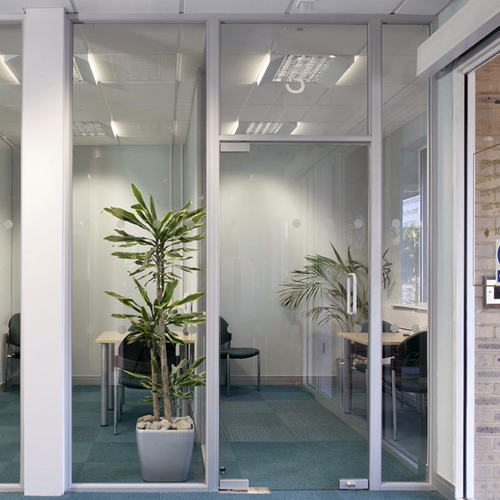

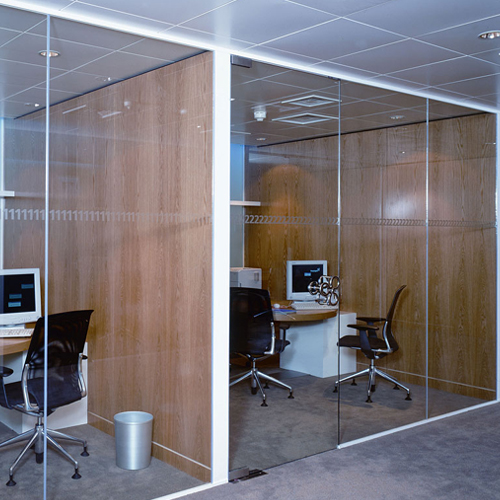

The Pivot Frameless Glass Swing Dooris our luxury glass door solutions that is completely customizable and is compatible with every partition system we offer as well as solid traditional walls.Free swing and self-closing are options that are offered with this versatile solution.  Custom assemblies and custom finishes are also offered with the Pivot Frameless Glass Swing Door.

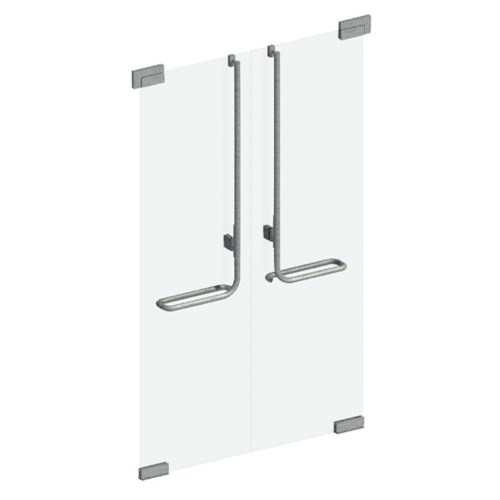

The door accommodates tempered, laminated, low iron and LCD glazing, and can be clear or patterned or have a custom graphic.  The Pivot Frameless Glass Swing Door fits into a straight or curved configuration and the only limit to it’s height is the height of the partition.  A pair of pivot doors is also an option for wider entries.  The Frameless Glass Pivot Door is compatible with any of the hardware we offer; locking and non-locking.

The Pivot Frameless Glass Swing Door is completely compatible with all of our systems which are fully demountable, which qualify for LEED credits.

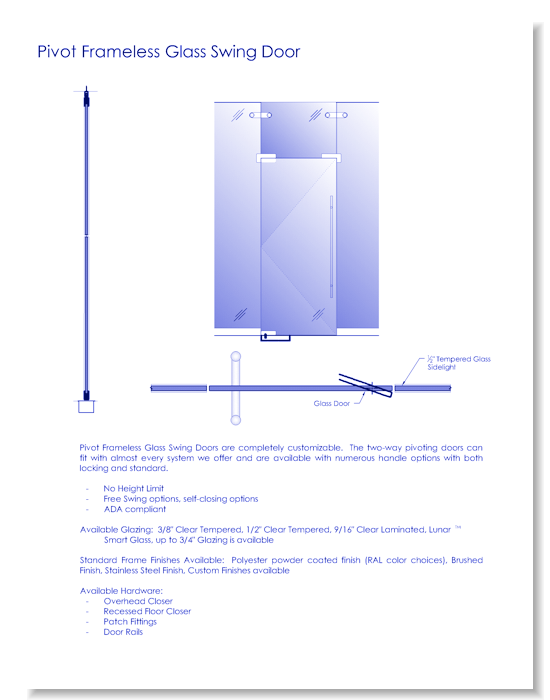

CAD Drawings BIM Models Avanti Systems USA Pivot Doors: Frameless Swing Door - Architects Package
CAD Drawings BIM Models Avanti Systems USA Pivot Doors: Frameless Swing Door - Architects Package
CAD Drawings BIM Models Avanti Systems USA Pivot Doors: Frameless Swing Door - Architects Package
