Avanti Systems USA

Pivot & Hinged Doors: Acoustic Double Glazed Glass Swing Door - Architects Package

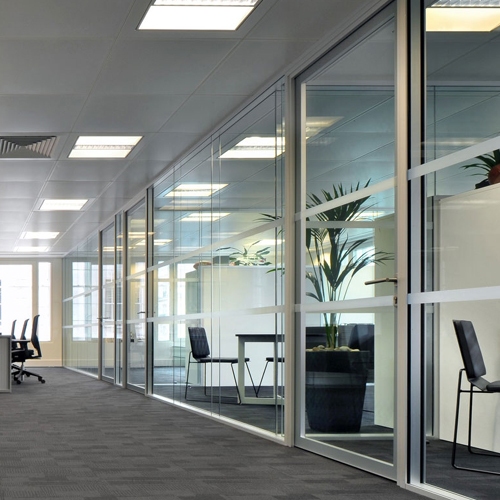

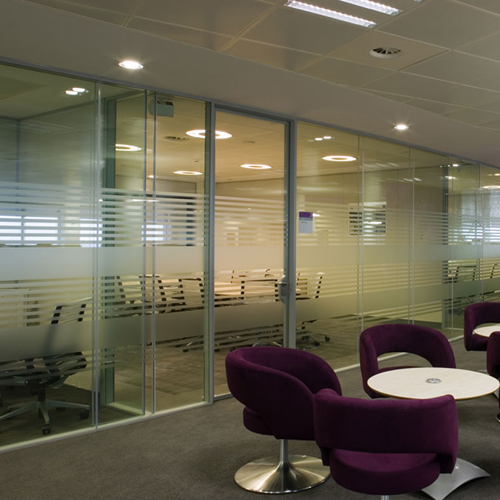

The Double Glazed Acoustic Swing Door fits seamlessly into our SolareTM Double Glazed Partition, ElevareTM Stacking Double Glazed High Wall System, MovareTM Movable Double Glazed System or Transverso MonoblockTM Modular Wall Partition System for superior sound resistance and style.

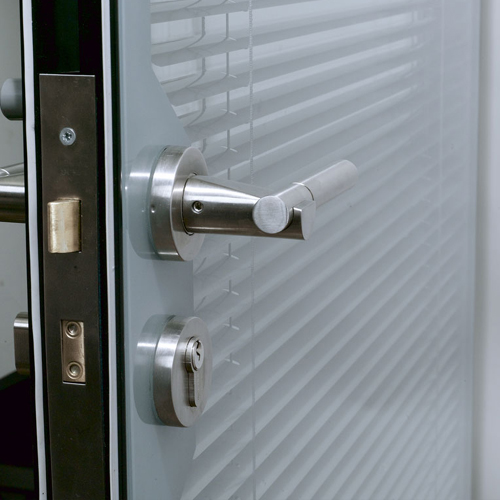

Tempered, laminated and low iron glazing is compatible with the door, and may be clear, patterned or have a custom graphic.  The Double Glazed Acoustic Swing Door fits into straight or curved configurations.  A pair of doors is also an option for wider entryways.  Our handles, hinges, pivots, and closers are compatible with the Double Glazed Acoustic Swing Door.  Available frame finishes include our standard polyester powder coated finish (RAL color choices), Brushed Finish and Stainless Steel Finish.  Custom finishes are also available.  Besides having an acoustic rating of up to 43dB, we offer the option of integrated blinds within the 1 1/8” air space between the glazing panels for privacy.

The Double Glazed Acoustic Swing Door is completely compatible with all of our systems which are fully demountable, which qualify for LEED credits.

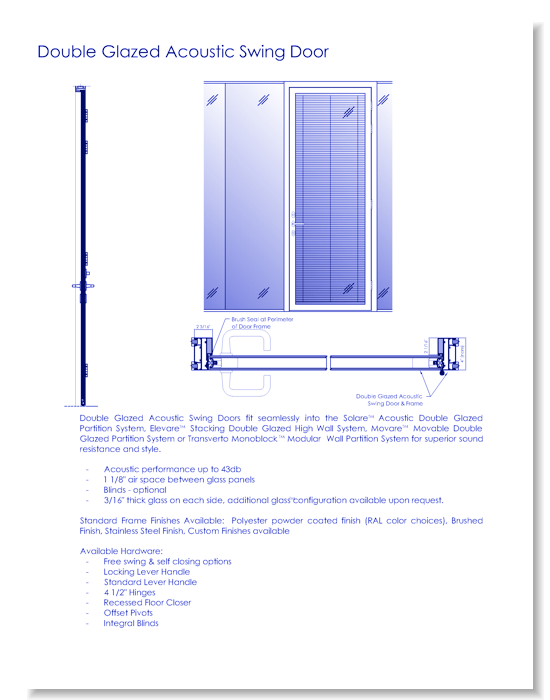

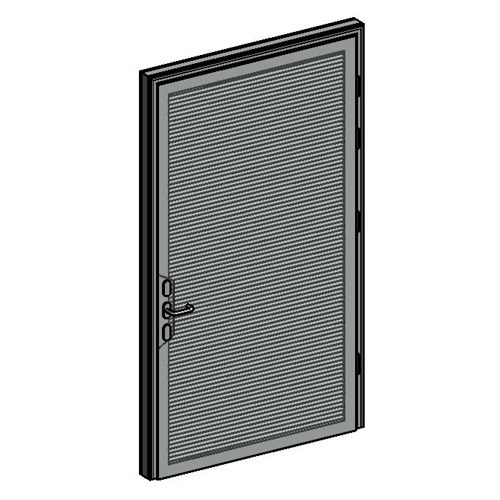

CAD Drawings BIM Models Avanti Systems USA Pivot & Hinged Doors: Acoustic Double Glazed Glass Swing Door - Architects Package
