Avanti Systems USA

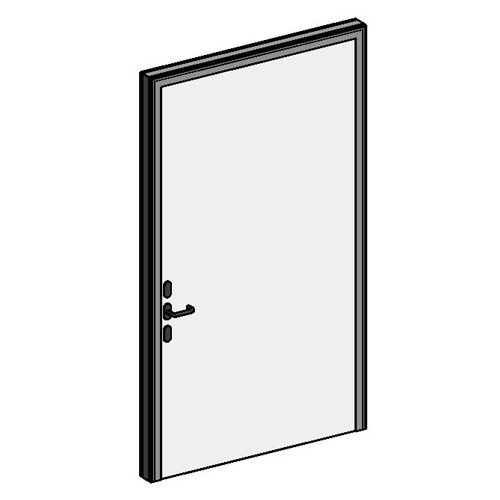

Pivot & Hinged Doors: Timber Swing Doors - Architects Package

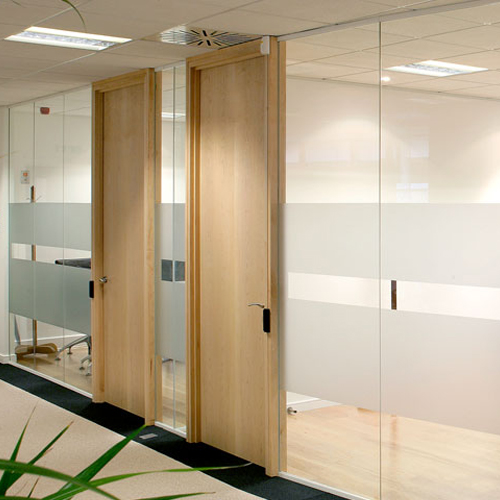

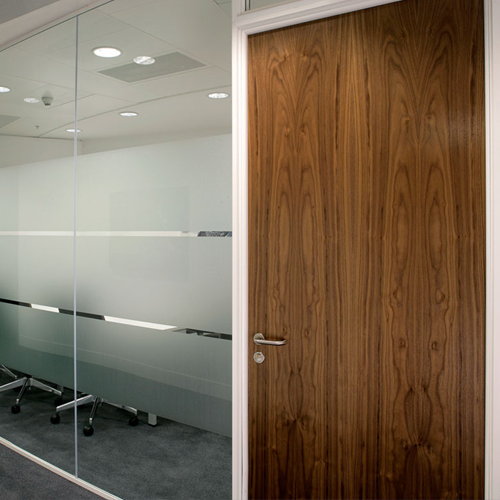

The Timber Swing Door is our alternative yet stylish door if you are looking for a contrast to the glazing partition.  Constructed with an aluminum frame, the door may be of standard height or may be full height of up to 8’-10” with a thickness of 1 7/8” and fit into any of the partition systems we offer .  Vision panels are available.  Timber doors are ideally suited for Conference Rooms, Offices or other spaces where a good sound insulation and reliability is required.

The Timber Door fits into straight or curved configurations.A pair of doors is also an option for wider entryways.  Our handles, hinges, pivots, sliding hardware, drop seals, door stops and closers are compatible with the Timber Swing Door.  Available finishes are shown on the EGGER color chart.The Timber Swing Door has an acoustic rating of up to 36dB.

The Timber Swing Door is completely compatible with all of our systems which are fully demountable, which qualify for LEED credits.

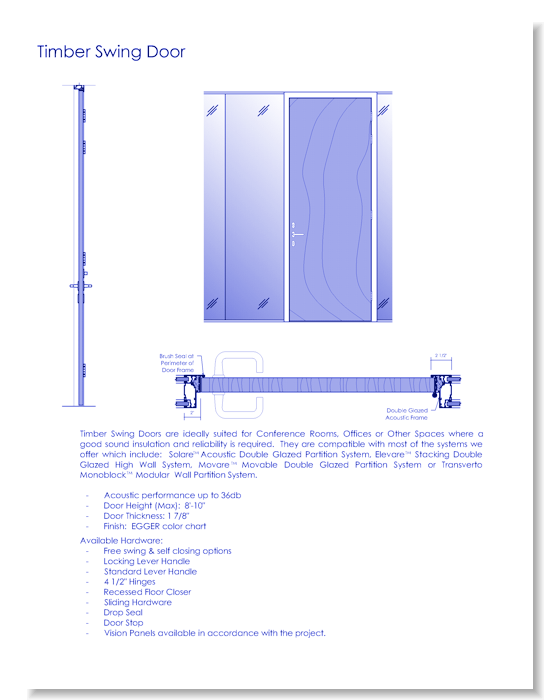

CAD Drawings BIM Models Avanti Systems USA Pivot & Hinged Doors: Timber Swing Doors - Architects Package
CAD Drawings BIM Models Avanti Systems USA Pivot & Hinged Doors: Timber Swing Doors - Architects Package
CAD Drawings BIM Models Avanti Systems USA Pivot & Hinged Doors: Timber Swing Doors - Architects Package
