Haws Corporation

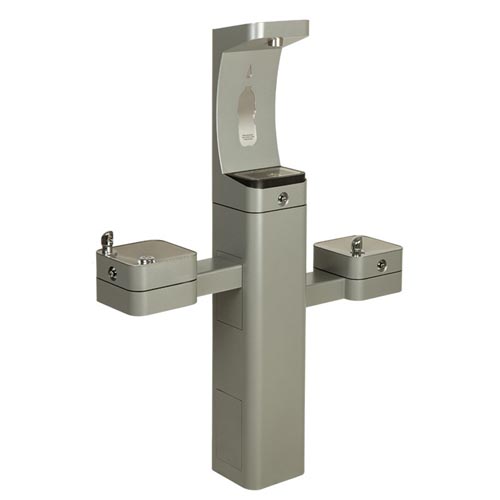

Model 3612FR: ADA Outdoor Stainless Steel Freeze-Resistant Bottle Filler and Dual Fountain


The Haws 3612FR heavy-duty outdoor, freeze-resistant ADA pedestal bottle filler and drinking fountain can be configured in multiple variations before or after installation. This model is standard with one bottle filler and two drinking fountain stations, and the option of adding/changing a drinking fountain, bottle filler, dog bowl and/or hose bib at any time. Water delivery is provided by a fully engineered pneumatic valve assembly that is one of the best in freeze-resistant technologies, and provides year-round operation. Equipped with vandal resistant components for long lasting durability.
  • Interchangeable fountain and bottle filler arms help this unit to meet the changing needs of its environment
  • ADA compliant standing adult height, wheel chair, and child wheel chair arm positions to accommodate all users
  • Large-opening bottle filler with quick-fill 1 gpm flow rate
  • Heavy-duty fabricated stainless steel with matte silver powder-coated finish
  • Custom color options available
  • 100% lead-free waterways
Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act, and complies with Prop 65. Certified by CSA to NSF/ANSI 61, section 9 and NSF/ANSI 372; and was evaluated to be compliant to US and Canada Plumbing Codes including Uniform Plumbing Code (UPC), International Plumbing Code (IPC) and National Plumbing Code of Canada (NPC).

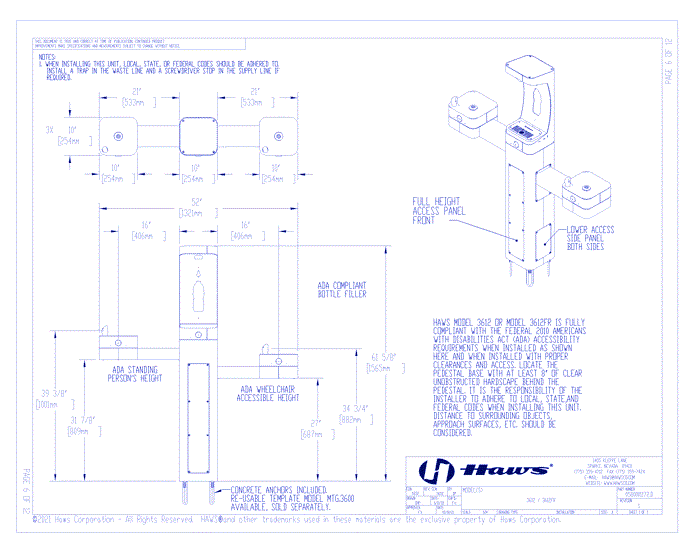

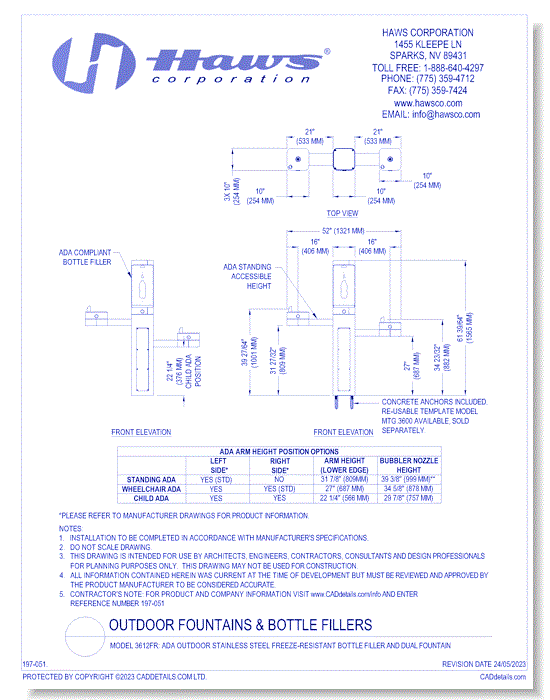

CAD Drawings BIM Models Haws Corporation Model 3612FR: ADA Outdoor Stainless Steel Freeze-Resistant Bottle Filler and Dual Fountain
