Miller Edge Inc.

RBAND Monitored Wireless Gate TX/RX


The RBAND is a wireless, monitored, gate edge transmitter and receiver system that eliminates the need to hardwire sensing edges to the gate operator. The bi-directional communication between the transmitter and receiver improves immunity to RF interference while monitoring the presence and function of a 10K sensing edge. The receiver can be paired with up to 6 transmitters/edges on 2 channels. The transmitter is built to endure rugged, outdoor environments, and operates at a range of 50’ nominal (100’ optimal) conditions.


Note:

• Tested with most listed commercial gate operator manufacturers

• Complies with the UL 325-2016 Standard

• May be used as the required monitored device or as an ancillary device


Before designing or motorizing any gate, be sure to read and understand the ASTM-F2200 standard for gate construction. Additionally, since 2009, the International Building Code (IBC-2009) has required compliance with the current UL 325 safety standard.


Miller Edge offers a convenient guide to help you comply with the ANSI/UL 325 standard for gate entrapment protection devices. To request a printed copy of this guide, please email [email protected]

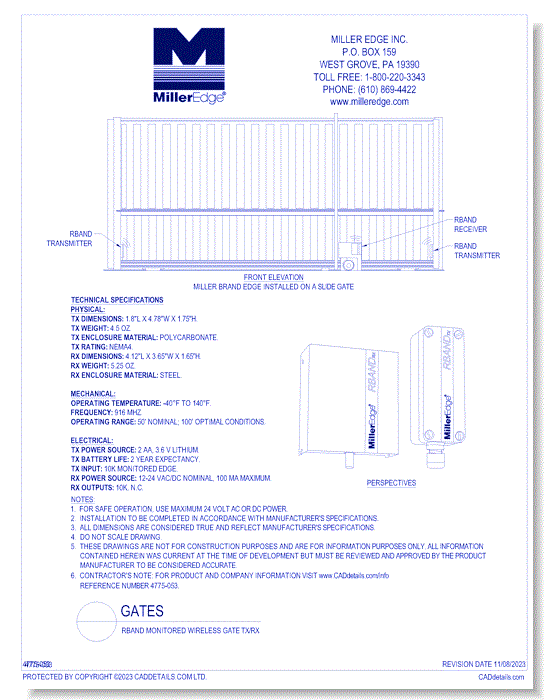

CAD Drawings Miller Edge Inc. RBAND Monitored Wireless Gate TX/RX
