DeepStream Designs

Mariner Garden Bench with Back and Arms

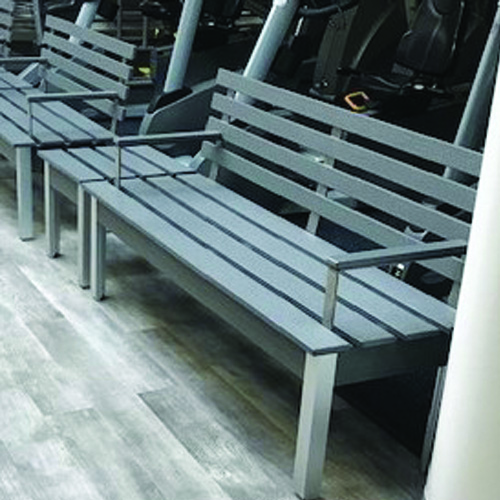

Looks are deceiving! What appears to be a simple wooden garden bench hides a rugged aircraft aluminum frame attached to marine anodized aluminum legs. The wood back and arm rests are supported with 316 Stainless Steel mounts. All components are easily replaceable. There is also a no-maintenance version in 100% Recycled Plastic Lumber.

A comfortable 72" bench is ready for your weary guests and it's rugged aluminum and 316 stainless steel frame will stand up to the test of time.

Available in any size from 30" to 72" long. The seat is an ergonomic 19.25" deep and set at a height of 17.5", the arm rest is 6.5" above the seat and the seat back reclines by 10 degrees.

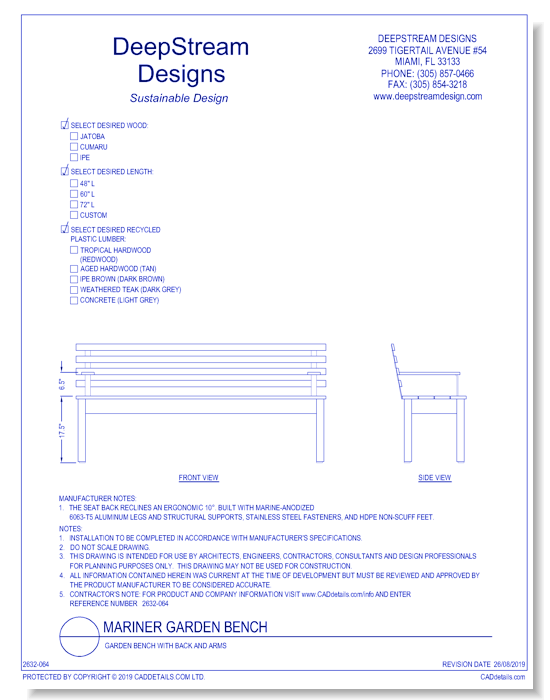

CAD Drawings DeepStream Designs Mariner Garden Bench with Back and Arms
