DIG Corporation

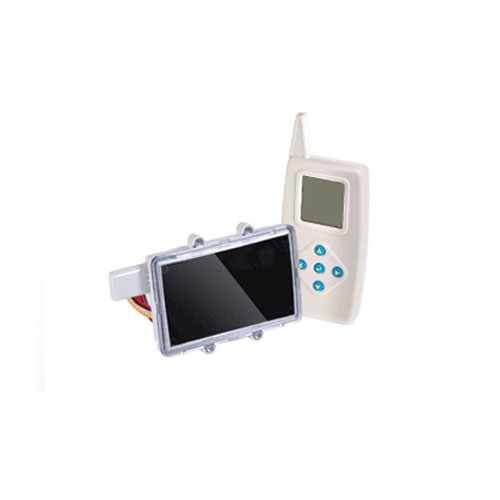

LEIT-2ET Smart, Ambient Light (Solar) Powered Irrigation Control System


DIG LEIT-2ET weather based wireless irrigation control system utilizes evapotranspiration (ET) data and site information to adjust daily irrigation programming according to real time weather information provided locally. The LEIT-2ET system is programmed to monitor, control and adjust irrigation schedules for each zone through evapotranspiration (ETo) data transmitted hourly and daily during daytime from a local weather station and site information received from the LEIT RC2ET handset. Site information provided by the LEIT RC2ET handset combined with the weather station data is used by the controller to calculate the daily local microclimate evapotranspiration (ETc) and automatically adjust the daily irrigation schedule.

Controller Features

  • Environmentally friendly- RoHS compliant components
  • Waterproof, IP68 compliance
  • Weather-resistant. Built from tough, rugged material to withstand harsh environmental conditions
  • Efficient photovoltaic module (PVM) energized by ambient light (solar) operating high efficiency microelectronic management system
  • Operates up to 2 stations and a rain sensor
  • Compatible with Unimax S-305DC solenoids
  • Unique Client ID identity code for controller and handset
  • Information transmitted from the weather station sensors or LEIT RC2ET handset is used to override or adjust daily scheduled irrigation programs
  • Utilizes ISM band radio frequency band (915MHz NA, 866.5MHz Hong Kong, 868MHz International) CE, IC, FCC certified, Australia and Hong Kong compliant
  • Non-volatile memory retains program and controller integrity
  • Program stacking feature prevents hydraulic overload
  • Custom station grouping allows controller to operate the two stations simultaneously if hydraulic limitations are not exceeded
  • Available with 18" (45 cm) color-coded 16 gauge wires for each valve and rain sensor
  • 3 mounting configurations including green, tan and purple valve box mounts, direct-to-valve clip mounting and column mounting with 25" (63 cm) or 50" (127 cm) mounting columns
  • 3 year manufacturer warranty
    Handset Features
  • Simple, icon-based programming
  • Reviews status information, updates ET information, checks history reports, adjusts budgeting, programs rain delays and performs manual run or tests
  • Environmentally friendly - RoHS compliant components
