Williams Brothers & Strike First Corporation Of America

WB FR DW 820


The WB FR-DW 800 Series Standard Fire-Rated Access Door with Drywall Flange is a durable, fire-rated flush access panel designed for wall and ceiling installation in applications where fire resistance and a concealed appearance is required. Featuring a heavy duty, 16 gauge steel frame with an insulated 20 gauge steel door and a white baked, paintable enamel finish, door is fire-rated for 1 1/2 hours in vertical installations and for 3 hours in horizontal installations. This fire rated access door with mud in flange features a perforated, tape-in flange allows for a trimless appearance to eliminate visual distraction.
CAD Drawings BIM Models Williams Brothers & Strike First Corporation Of America WB FR DW 820

Listing Back To Top

Design Visualizer

Design Visualizer

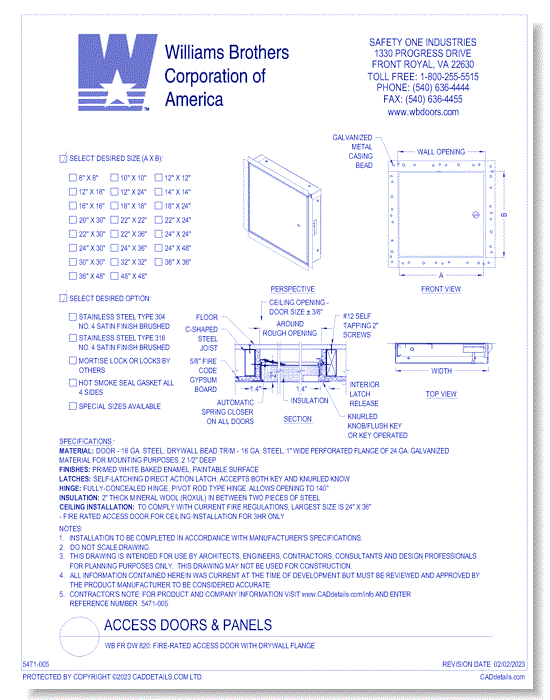

WB FR DW 820: Fire-Rated Access Door with Drywall Flange
WB FR DW 820: Fire-Rated Access Door with Drywall Flange
