Haws Corporation

Model 1011: Barrier-Free Dual Wall Mount Fountain


The Haws 1011 barrier-free "Hi-Lo" drinking fountain uses a patented stainless steel push-button valve assembly (Pat# 6,981,692) allowing for front access stream adjustment as well as cartridge and strainer access. Wall mounted swirl bowl design allows the 1011 to be placed securely in multiple locations without taking up excess space. Equipped with vandal resistant components, this fountain is not easily disrupted, quickly discouraging vandals.
  • 18 gauge Type 304 Stainless Steel bowl assembly mounted on a 14 gauge Type 304 Stainless Steel wall bracket
  • 100% lead-free waterways
  • Polished chrome-plated brass vandal-resistant bubbler heads with integral laminar anti-squirt flow eliminate water splash
  • Easy maintenance with front access to valve adjustment and cartridge replacement
  • Beautiful satin finish resists stains and corrosion
  • "Hi-Lo" design allows for twice the users as regular fountains and suits the needs for various user heights
Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains and electric water coolers to be lead-free by all known definitions including NSF/ANSI Standard 61, Section 9, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006).

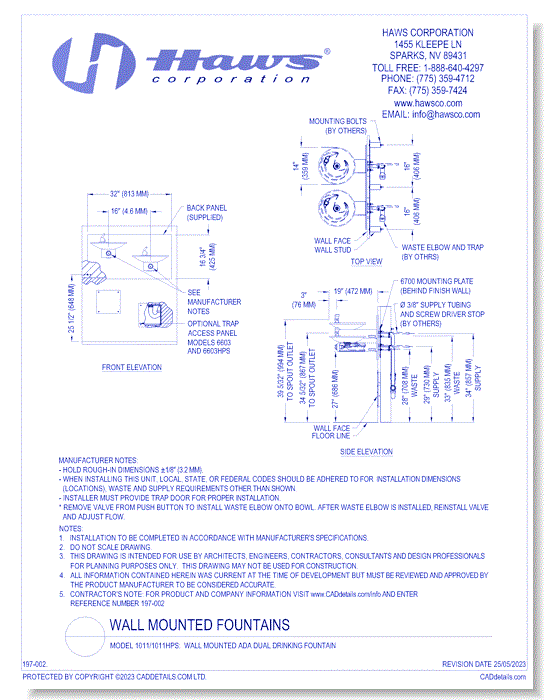

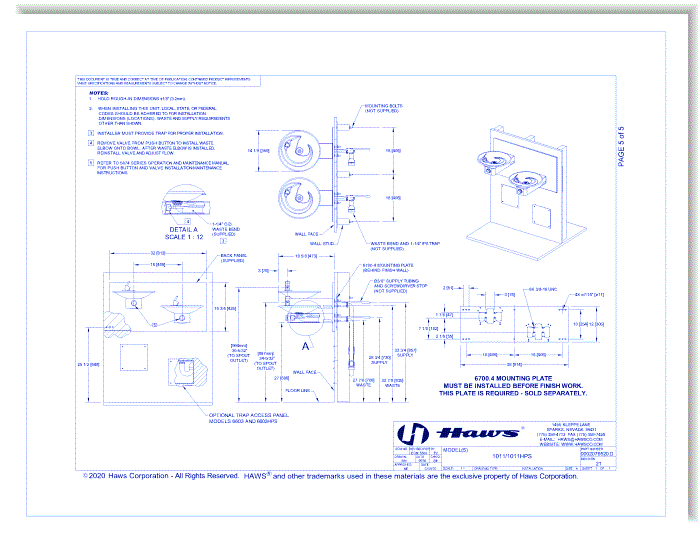

CAD Drawings BIM Models Haws Corporation Model 1011: Barrier-Free Dual Wall Mount Fountain
CAD Drawings BIM Models Haws Corporation Model 1011: Barrier-Free Dual Wall Mount Fountain CAD Drawings BIM Models Haws Corporation Model 1011: Barrier-Free Dual Wall Mount Fountain

Listing Back To Top

Design Visualizer

Design Visualizer

Model 1011/1011HPS/1011HO:  Wall Mounted/Touchless Hi-Lo Drinking Fountain
Model 1011/1011HPS/1011HO:  Wall Mounted/Touchless Hi-Lo Drinking Fountain
Model 1011/1011HPS/1011HO:  Wall Mounted/Touchless Hi-Lo Drinking Fountain
